Understanding Wire Connectors: Types, Uses, and How to Use Them
Wire connectors are small devices used to join two or more electrical wires together. They are widely used in various electrical applications and essential electrical connection components. Wire connectors are designed to securely hold and connect wires, ensuring a safe and reliable electrical connection.
What is the Use of Wire Connectors?
They make electrical connections in various applications, including home wiring, automotive wiring, and electronic circuits. They are used to connect wires of different sizes, shapes, and materials, and they provide a secure and reliable connection that is essential for the proper functioning of electrical systems.
They are handy when wires need to be connected or disconnected frequently, such as in automotive wiring or electronic circuits. They provide an easy and efficient way to make connections without soldering or crimping wires together.
How to Use Wire Connectors?
Using wire connectors is a simple process that requires no special skills or tools. Here are the steps to follow:
1. Strip the wire insulation: Before using a wire connector, strip the insulation from the end of the wire using wire strippers. The length of the striped wire should be equal to the size of the connector.
2. Insert the wires into the connector: Hold the connector and insert the stripped wires into the connector's openings. Ensure the wires are inserted and the insulation does not touch the connector's metal part.
3. Tighten the connector: Twist the connector clockwise using pliers until it is tightly secured to the wires. Ensure the connector is tight and does not move when the wires are pulled.
4. Test the connection: After making the connection, gently pull on the wires to ensure that the connector securely holds them.
How to Remove Wire from Connector?
Removing wires from a connector is a simple process requiring no special skills or tools. Here are the steps to follow:
1. Hold the connector: Firmly grasp the connector with pliers or your fingers.
2. Twist and pull: Twist the connector counterclockwise while pulling on the wire to remove it from the connector. Be careful not to pull too hard, which may damage the wire or the connector.
3. Inspect the wire: After removing it from the connector, inspect it for damage or wear. If the wire is damaged, cut it off and strip a new section before making a new connection.
Types of Wire Connectors
Several types of wire connectors are available, each designed for specific applications and wire sizes. Here are some of the most common types of wire connectors:
Twist-On Wire Connectors
Twist-on connectors or wire nuts, are the most common type. They are designed to connect two or more wires by twisting them together and securing them with a plastic cap. Twist-on wire connectors are available in various sizes and can accommodate wires of different sizes.
Crimp-On Wire Connectors
Crimp-on connectors designed to join wires by crimping them together using a crimping tool. They provide a more secure connection than twist-on wire connectors. They are commonly used in automotive wiring and other high-vibration applications.

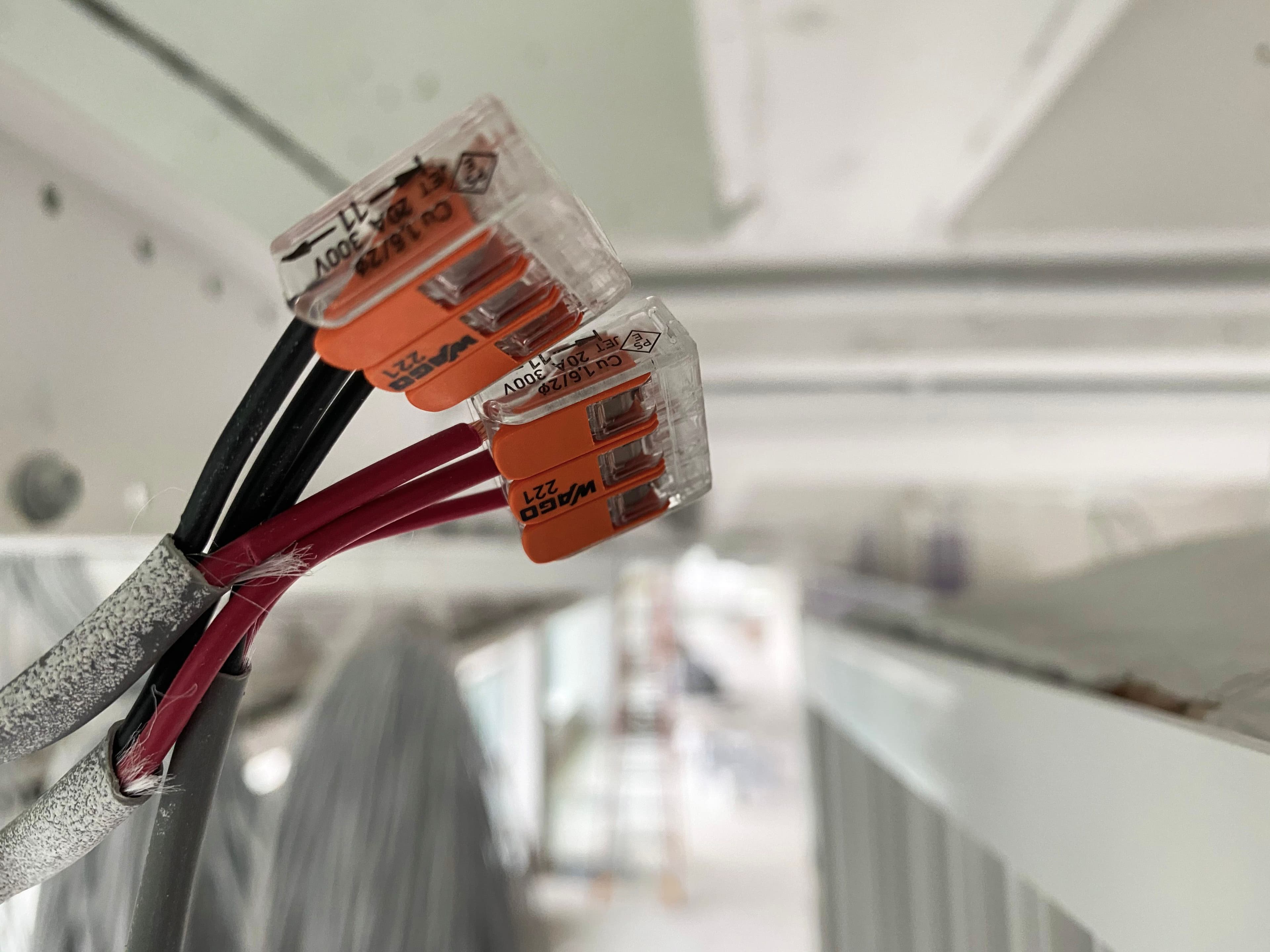

Push-In Wire Connectors
Push-in connectors are designed to make connections without twisting or crimping wires. They are designed to accept wires of various sizes and are easy to install and remove. Push-in wire connectors are commonly used in lighting fixtures and other household applications.
Butt Splice Connectors
Butt splice connectors are used to join two wires end-to-end. They are designed to provide a secure and reliable connection. They are commonly used in automotive wiring and marine applications where exposed links are subject to moisture and corrosion. Butt splice connectors are available in various sizes and can accommodate wires of different sizes.
Solder Connectors
Solder connectors are used to join wires by soldering them together. They provide a strong and reliable connection and are commonly used in electronic circuits and other applications requiring a permanent connection. Solder connectors are available in various sizes and can accommodate wires of different sizes.
Terminal Blocks
Terminal blocks are used to connect multiple wires to a single connection point. They are commonly used in industrial and commercial applications and provide a secure and reliable connection. Terminal blocks are available in various sizes and can accommodate wires of different sizes.
